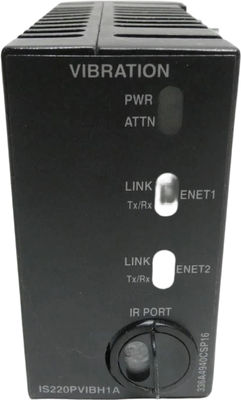

New GE Mark VIe Vibration Monitoring Control Module 1kg 16*16*12cm Vibration Monitor I/O Pack

The GE IS220PVIBH1A is a Vibration Monitor (PVIB) pack developed by GE under the Mark VIe control system. The Vibration Monitor (PVIB) pack connects one or two I/O Ethernet networks to the TVBA vibration terminal board electrically.

The pack includes a processor board, an acquisition board, and a daughterboard, which are all common to all Mark VIe distributed I/O packs. The processor board is connected to an acquisition board that is appropriate to the purpose of the I/O pack or module.

The soft-start circuit ramps up the voltage available on the processor board when input power is applied. The processor reset is removed, and the local power supplies are sequenced on. The CPU runs self-test procedures before loading application code from flash memory that is particular to the I/O pack or module type.

I/O pack modules are very reliable and so less prone to damage. But the improper handling and poor storage can affect the module's functionality, so we recommend keeping the module in static sensitive storage boxes in recommended conditions.
