Name: IPC707 244-707-000-012 A3-B1-C9810-D3-E2-F10000-G2 Signal Conditioner
Brand: Joyoung International Trading Co.,Ltd
SKU: IPC707 244-707-000-012 A3-B1-C9810-D3-E2-F10000-G2
Price: 2000 USD
Availability: InStock

Inicio Productos Otras marcas

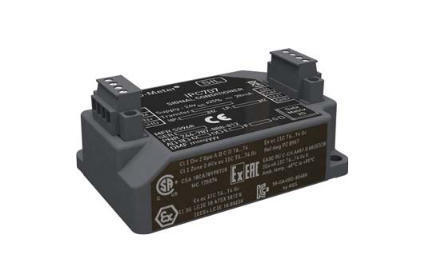

IPC707 244-707-000-012 A3-B1-C9810-D3-E2-F10000-G2 Signal Conditioner

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Other Brands
Certificación:	CO
Número de modelo:	IPC707 244-707-000-012 A3-B1-C9810-D3-E2-F10000-G2
Documento:	DS_IPC707-en-2.pdf

Pago y Envío Términos:

Cantidad de orden mínima:	1EA
Precio:	$2000
Detalles de empaquetado:	Original
Tiempo de entrega:	3-5 días laborables
Condiciones de pago:	T/T
Capacidad de la fuente:	10 piezas por día

Contacto

Descripción detallada del producto

Nombre de la marca:	Other Brands	Modelo de producto:	Se trata de un sistema de control de las emisiones.
Número de pieza:	A3-B1-C9810-D3-E2-F10000-G2	Embalaje:	Original
Garantía:	1 año	plazo de entrega:	En stock
Resaltar:	IPC707 signal conditioner , 244-707-000-012 signal converter , A3-B1-C9810-D3-E2-F10000-G2 industrial signal conditioner

IPC707 244-707-000-012 A3-B1-C9810-D3-E2-F10000-G2 Signal Conditioner

Product Specifications

Brand Name	Others
Model	IPC707 244-707-000-012
Ordering Information	A3-B1-C9810-D3-E2-F10000-G2
Origin	China
Dimension	161612 cm
Weight	1 kg
HS Code	8537101190
Payment	T/T
Sales Price	$2000
Warranty	12 months
Lead Time	3-5 work days

Product Description

The IPC707 signal conditioner is designed to work with piezoelectric-based sensors and compatible cabling that meets required input specifications. When combined with GSI127, the measurement chain enables signal transmission up to 1 km—significantly longer than alternative solutions.

RFI filters provide comprehensive EMI protection
Optional hazardous area protection available
Differential charge amplifier with adjustable HP/LP filters
Optional velocity integrator
Switchable current/voltage output
Optional BITE diagnostics for detecting measurement chain issues

The analog output combines AC (dynamic) and DC (diagnostic) signals, where DC values indicate normal or abnormal operational status and can trigger alarms. This ensures safe operation, reduces operational costs, and meets SIL 2 (IEC 61508) and PL c Cat 1 (ISO 13849) safety requirements.

Housed in durable molded aluminum, the IPC707 mounts via screws (compatible with IPC704 sizing) or optional DIN rail adaptor. Removable connectors simplify installation, while the ABA17x housing provides additional environmental protection. This unit replaces legacy IPC704 models (PNR 244-704-000-xxx) and is compatible with various piezoelectric materials. Contact local representatives for specialized applications.

Related Part Numbers

XVC768AE105	3BHB007211R0105
UF C784 AE101	3BHE003688R0101
UNS0862A-P	HIEE405179R1
SDCS-CON-2A	3ADT309600R0002
89NU04B-E	GKWE853000R0200
